Cut and Straighten Wire Machine

We are instrumental in providing to our valuable customers excellent quality Wire Straightening And Cutting Machine which is available with following specification:

  • Wire diameter: 5-12mm
  • Cutting length: 800-12000mm
  • Haulage speed: 80-120m/minute
  • Accuracy of cutting length: ≤±3mm
  • Capacity of pay- off: ∽2T
  • Rated power: 27.5Kw
  • Machine size: 20*1.5*1.5m
  • Total weight: 4T

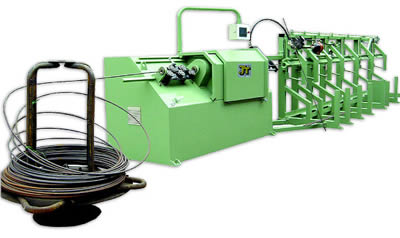

Pic 1:
The Wire Straightening and Cutting Machine is to straighten and cut the wires according to the desired length using PLC control system.

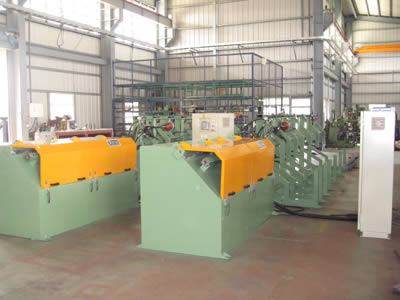

Pic 2:
Wire Straigthening and Cutting Machine [Model #: HX-HSC Series

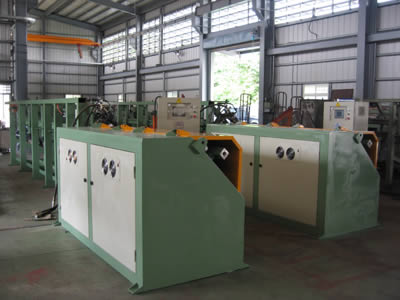

Pic 3:
Wire Straigthening and Cutting Machine [Model #: HX-HSC Series] - REAR VIEW

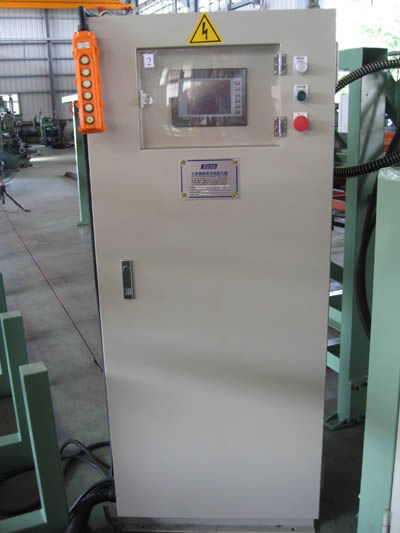

Pic 4:
Control Panel with touchable color screen

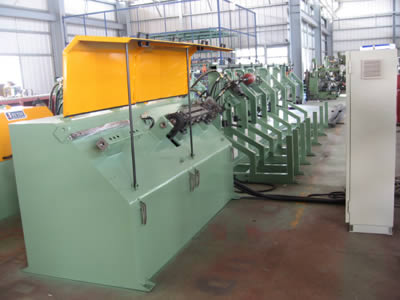

Pic 5:
Cover supporting rods for making adjustments
